Tecsound FT 55 AL, (Acoustic Pipe Wrap)

£129.95 (Excluding VAT) Price promise
£155.94 (Including VAT)

  • Performance: varies depending on the application.
  • Dimensions: 5.5m x 1.2m x 12.5mm.
  • Weight: 37kg.
  • For: homes, workplaces, industrial developments, metal supports, and specialist audio environments.
  • Compliance: Compliant with both Part E Building Regulations (England, Wales, Northern Ireland and the Republic of Ireland).*
  • Where: to be used for soundproofing metal cuts, PVC and metal sewage pipes, industrial machinery as an acoustic curtain and air conditioning units.

Tecsound FT55 AL (Acoustic Pipe Wrap) is a flexible, easy to handle and high performing acoustic wrap for soundproofing a range of different servicing, from HVAC units to metal cladding.

It is problematic when you can hear the noise of a heating or air conditioning unit rattling; this rattling travels throughout the ducting or pipes and leads to vibration transferring through the structure. Waste pipes are exposed to similar issues, without adequate boxing in or a soundproofing solution, this makes for a slightly uncomfortable environment as silence descends over the room. These can all be solved by the use of our Tecsoundf FT55 Al (Acoustic Pipe Wrap).

Tecsound FT55 AL (Acoustic Pipe Wrap) is a visco-elastic membrane, and this means it is both a viscous material, part way between a solid and a liquid, and has elastic properties, meaning that it returns to its original form when stresses within its limits are applied, like pulling an elastic band, if you pull it too hard it will break. For soundproofing, these are both effective in the damping of vibration, and because of its high mass, will reduce airborne noise too. Alongside this is a felt inside that helps to soften the noise transfer and it then finished with a protective foil meshing, one that can be applied to exposed ductwork to help fit into its 'look' when installing as a standalone without creating acoustic boxing.


  • Soundproofing industrial ductwork
  • Soundproofing air conditioning units
  • Soundproofing waste pipes, both PVC and metal
  • Soundproofing internal of machinery to reduce vibration



This product contains a high level of mass if there any structural concerns you will want to consult a Structural Engineer to discuss your requirements.

*Our Typical Performance Results and Noise Reduction Guidance are provided to indicate the results that have been achieved in previous tests but are not guaranteed to a specific site as multiple factors can affect this, you can view their variants on our 'Featured Systems' tab.

We endeavour to display the most up to date testing and assist in managing your expectations through each stage of the process so that the choice we make is the right one.



EAN number5060484200087
Weight37 kg
Length5500 mm
Width1200 mm
Height12.5 mm

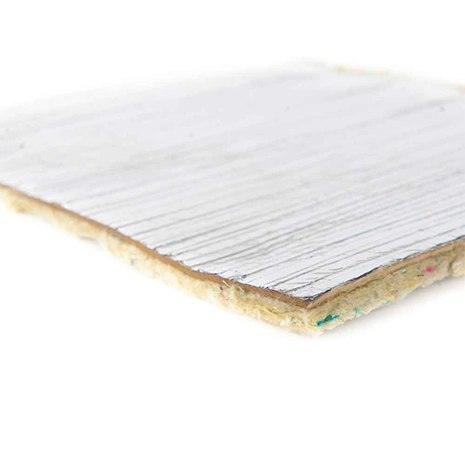

Tecsound FT55 AL (Acoustic Pipe Wrap) is a visco-elastic material with a felt inside to increase it's damping qualities, the finishing is protective aluminium mesh. Visco-elastic is a material that sits between the properties of a viscous substance (between a liquid and a solid, easily malleable) and an elastic material that both help to provide a material with the density to help sound proof against airborne noise issues, as well as reducing vibration by dissipating sound energy by turning it into heat.

Tecsound FT55 AL (Acoustic Pipe Wrap) temperature range is between -20°C to 60°C, anything above and below these could degrade the viscoelastic material and cause it to dry out. We would recommend applying Tecsound a dedicated acoustic plasterboard boxing to encase it. You will want to discuss these options with a registered plumbing expert to be sure of its compatibility.

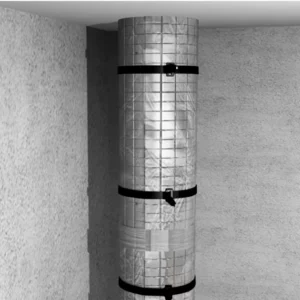

The use of Tecsound FT55 AL (Acoustic Pipe Wrap) for sound proofing waste pipes a the primary focus of the product, it is straightforward to cut and wrap around the pipe to help provide damping to any vibration and the assisting in sound proofing against airborne noise from waste travelling through the pipework. Cable Ties are used to secure the Tecsound FT55 AL (Acoustic Pipe Wrap) in place and the use of Aluminium Tape to maintain the external aesthetic.

The vapour and moisture levels in bathrooms and wet rooms could over time degrade the Tecsound FT55 AL (Acoustic Pipe Wrap) elasticity over time, it is recommended to use a Vapour or Moisture plasterboard boxing to protecting it from direct exposure, you will want to discuss the use of soundproof materials with a damp specialist in areas that could present damp issues over time.

Tecsound FT55 AL (Acoustic Pipe Wrap) is not designed for floor sound proofing; although a felt inside would appear to be suitable, it would offer little impact reduction as it is easily compressible. We have a wide range of soundproofing options for floors which you can view here.
