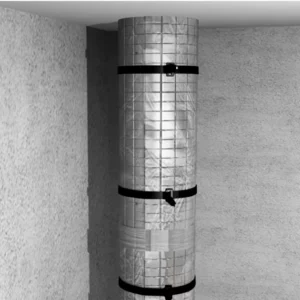

Tecsound FT 55 AL, (Acoustic Pipe Wrap)

Shipped by iKoustic from the UK


£149.94 inc. VAT

Delivery and Returns Policy

  • Self-adhesive vibration dampening membrane.
  • Aluminium backed for decorative purposes
  • Effective against impact and airborne noise.
  • Dimensions: 5.5m x 1.2m x 12.5mm (6.6m2)
  • Weight: 37kg.

Tecsound is a flexible, easy-to-handle and high-performing acoustic membrane for all your soundproofing needs. It is a feature in many of our acoustic systems and is suited for timber and concrete structures with a particular focus on the ‘muting’ of vibration in metal structures.

Tecsound FT 55 AL, (Acoustic Pipe Wrap)

Tecsound is a wonder material in the soundproofing world. If you are soundproofing a wall or ceiling, Tecsound can perform a vital role in reducing both impact and airborne noise.

Tecsound is a viscoelastic membrane that is excellent at absorbing sound vibrations. Its high mass means it performs well at reducing airborne noise. Tecsound is self-adhesive meaning it can be rolled out on walls and ceilings for simple installation.

Tecsound is best used as part of a ‘soundproofing system’ in these systems we pair Tecsound with complementary soundproofing products to develop the most effective soundproof partitions that take up the least possible space.

Tecsound FT 55 AL Acoustic Pipe Wrap
Mammoth aliminum Tape

Aluminium tape joints

Keep pipes looking aesthetically pleasing by sealing them with aluminium tape

Vibration dampening graphic

Vibration dampening

One of the most remarkable features of this product is its ability to dampen vibration on metal structures. Vibration and resonance are noticeably dissipated with Tecsound.

Impact Noise

Reduces airborne and impact noise

Most soundproofing materials can only reduce impact or airborne noise but due to its unique properties, Tecsound is effective against both.

packaging boxes wrapped plastic pallets with hand pallet truck shipping warehouse cargo shipment

Tecsound UK shipping

Tecsound FT 55 AL, (Acoustic Pipe Wrap) is shipped on a pallet. Unlike others, we hold stock of all of our products ready to dispatch same day Monday to Friday. We also offer next day delivery for orders placed before 1pm Monday to Friday.

Damp proof-01

Mould, moisture and fungus resistant

Tecsound does offer some mould, moisture, and fungus-resistant properties.

Bathrooms and wet rooms present high amounts of vapour and moisture, which can gradually degrade the adhesive qualities and elastic materials in the Tecsound FT55 AL (Acoustic Pipe Wrap). We recommend that when using Tecsound in an acoustic system, it has at least a Vapour or Moisture board protecting it from either side, it is most common that Moisture Board is used internally in bathrooms to preserve the soundproofing materials behind it, there should be no direct exposure to damp areas. Vapour Boards concern primarily external walls, so in areas where you expect – you may wish to discuss to use of soundproofing materials with a damp specialist.

Tecsound FT55 AL (Acoustic Pipe Wrap) temperature range is between -20°C to 60°C, anything above and below these could degrade the viscoelastic material and cause it to dry out. We would recommend applying Tecsound a dedicated acoustic plasterboard boxing to encase it. You will want to discuss these options with a registered plumbing expert to be sure of its compatibility.

Tecsound FT55 AL (Acoustic Pipe Wrap) is not designed for floor sound proofing; although a felt inside would appear to be suitable, it would offer little impact reduction as it is easily compressible. We have a wide range of soundproofing options for floors which you can view here.

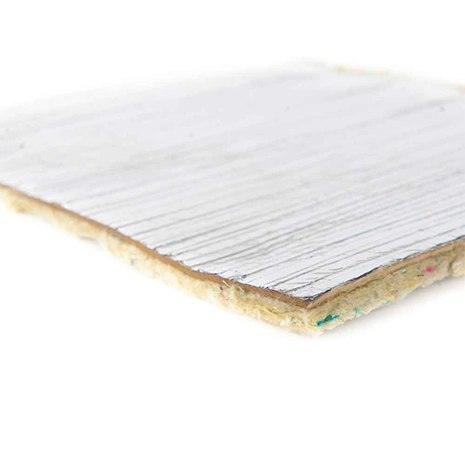

Tecsound FT55 AL (Acoustic Pipe Wrap) is a visco-elastic material with a felt inside to increase it’s damping qualities, the finishing is protective aluminium mesh. Visco-elastic is a material that sits between the properties of a viscous substance (between a liquid and a solid, easily malleable) and an elastic material that both help to provide a material with the density to help sound proof against airborne noise issues, as well as reducing vibration by dissipating sound energy by turning it into heat.

Comparing different types of Tecsound

Product Thickness kg/m2 m2 coverage dB rating
Tecsound S100 5mm 10kg 4.8m2 31dB*
Tecsound SY70 4mm 7kg 6.16m2 28dB*
Tecsound SY50 2.5mm 5kg 7.38m2 25.2dB*

Find out more information about Tecsound Acoustic Pipe Wrap by downloading the guides below.

Product Data Sheet

If you are looking to specify this product for a build, please refer to our downloads tab for technical product or systems information.

Technical Support
Should you require further technical assistance in specifying our products, please contact us and ask for our Technical Rep, Gabriel Whittle.

BIM Objects
iKoustic also supply a selection of BIM objects via our NBS profile, which can be found here.

Important Information

Our products contain a high level of mass. If there are any structural concerns you will want to consult a Structural Engineer to discuss your requirements.

*Our Typical Performance Results and Noise Reduction Guidance are provided to indicate the results that have been achieved in previous tests but are not guaranteed to a specific site as multiple factors can affect this, you can view their variants on our 'Featured Systems' tab.
