Acoustic Floor

Acoustic floors are full soundproof floor systems that may be referred to as floating floors. The goal of these systems is to reduce impact and airborne noise travelling through a floor to a room below. Particularly common in flats and converted flats these soundproofing systems can aid in reducing the sound vibrations that travel from one flat to another.

If you are a developer looking to pass Part E regulations this is the highest performing floor soundproofing. Please do get in touch with our team to see what the most appropriate floor soundproofing system will be for you.

  • Isoaltion strip rolls

    Isolation Strip F5

    From: £14.00
    • Acoustic isolation strip to be used with stud frames.
    • Fit to the perimeter of a stud frame to reduce vibrations.
    • Ideal for soundproofing flats, apartments and commercial developments.
    • Dimensions: (100mm or 50mm) x 5mm x 10m
    • Weight: 2/4kg
    • Noise reduction: Expected 3-5 dB reduction* What’s this?



    Select optionsLoading Done This product has multiple variants. The options may be chosen on the product page
  • STS TG4 acoustic flooring board

    STS TG4 Acoustic Flooring Board 18mm

    £34.95
    • Performance: 33dB.*
    • Dimensions: 1200mm x 600mm x 18mm
    • Weight: 18.8kg
    • Mass: 26.1 kg/m²
    • For: Homes and commercial installations.
    • Compliance: Compliant with Part E Building Regulations (England, Wales, Northern Ireland and the Republic of Ireland).*
    • Installation: See our install section below.
    • Where: Structural flooring replacement where additional mass is needed for airborne sound reduction.

    A load-bearing, cement particle board for the improvement of airborne noise in flooring systems.

  • STS TG4 acoustic flooring board

    STS TG4 Acoustic Flooring Board 22mm

    £39.95
      • Performance: 34dB.*
      • Dimensions: 1200mm x 600mm x 22mm
      • Weight: 24.8kg
      • Mass: 34.4 kg/m²
      • For: Homes and commercial installations.
      • Compliance: Compliant with Part E Building Regulations (England, Wales, Northern Ireland and the Republic of Ireland).*
      • Installation: See our install section below.
      • Where: Structural flooring replacement where additional mass is needed for airborne sound reduction.

      A load-bearing, cement particle acoustic flooring board for the improvement of airborne noise in flooring systems.

  • STS cement construction board

    9mm STS Construction Board

    £18.95
    • Cement Fibre Board to be used as part of an acoustic system.
    • Prevents flexing that could damage floor tiling, LVT, and vinyl floor types.
    • Euro Class A1 Fire rating.
    • Can be used in damp conditions.
    • Dimensions: 800mm x 1200mm x 9mm
    • Weight: 12.8 kg
  • Versafloor acoustic flooring board

    Versafloor® 22mm

    £32.95
    • Performance: 34dB.*
    • Dimensions: 1200mm x 600mm x 22mm
    • Weight: 21 kg
    • Mass: 28.6 kg/m2
    • For: Homes and workplaces.
    • Compliance: Compliant with Part E Building Regulations (England, Wales, Northern Ireland and the Republic of Ireland).*
    • Installation: See our install section below.
    • Where: An effective over boarding or replacement for ply and chipboard flooring with increased weight to improve airborne reduction.

    A load-bearing, cement particle board for the improvement of airborne noise in flooring systems.

  • Versafloor acoustic flooring board

    Versafloor® 18mm- Acoustic Flooring Board

    £26.95
    • Performance: 33dB.*
    • Dimensions: 1200mm x 600mm x 18mm
    • Weight: 17kg
    • Mass: 23.6 kg/m²
    • For: Homes and workplaces.
    • Compliance: Compliant with Part E Building Regulations (England, Wales, Northern Ireland and the Republic of Ireland).*
    • Installation: See our install section below.
    • Where: An effective over boarding or replacement for ply and chipboard flooring with increased weight to improve airborne reduction.

    A load-bearing, cement particle board for the improvement of airborne noise in flooring systems.

  • Acoustic underscreed pimpled

    MuteMat® USP 750-08

    £183.95
      • Performance: Up to 26dB reduction for impact*.
      • Dimensions: 10m x 1.3m x 8mm (13m2)
      • Weight: 59kg.
      • For: Great and small scale residential and commercial projects looking for soundproof under screeds.
      • Compliance: Compliant with both Part E Building Regulations (England, Wales, Northern Ireland and the Republic of Ireland).*
      • Installation: Please see our installation tab below.
      • Where: For under screed projects requiring isolation from low-frequency vibration and impact noise.

      Our pimpled under screed underlay specialised for controlling excessive noise issues in concrete structures.

      Up to 19dB reduction for impact*.

  • Sale! Acoustic underscreed pimpled

    MuteMat® USP 600-25

    Original price was: £25.00.Current price is: £10.83.
      • Dimensions: 1m x 1m x 25mm (1m2)
      • For: Great and small scale residential and commercial projects looking for soundproof under screeds.
      • Compliance: Compliant with both Part E Building Regulations (England, Wales, Northern Ireland and the Republic of Ireland).*
      • Installation: Please see our installation tab below.
      • Where: For under screed projects requiring high levels of isolation from low-frequency vibration and impact noise.

      Our most robust under screed underlay specialised for concrete structures.




  • Sale! Acoustic underscreed pimpled

    MuteMat® USP 625-17

    Original price was: £32.95.Current price is: £20.00.
      • Performance: Up to 28dB reduction for impact*.
      • Dimensions: 1m x 1m x 17mm (1m2)
      • Weight: 7.8kg.
      • For: Great and small scale residential and commercial projects looking for soundproof under screeds.
      • Compliance: Compliant with both Part E Building Regulations (England, Wales, Northern Ireland and the Republic of Ireland).*
      • Installation: Please see our installation tab below.
      • Where: For under screed projects requiring high levels of isolation from low-frequency vibration and impact noise.

      Our most robust under screed underlay specialised for concrete structures.




  • Sale! Acoustic underscreed pimpled

    MuteMat® USP 750-10

    Original price was: £12.50.Current price is: £6.67.
      • Dimensions: 1m x 1m x 10mm (1m2)
      • For: Great and small scale residential and commercial projects looking for soundproof under screeds.
      • Compliance: Compliant with both Part E Building Regulations (England, Wales, Northern Ireland and the Republic of Ireland).*
      • Installation: Please see our installation tab below.
      • Where: For under screed projects requiring high levels of isolation from low-frequency vibration and impact noise.

      Our most robust under screed underlay specialised for concrete structures.




  • Sale!

    MuteCradleâ„¢ 16/30mm – Acoustic Cradle

    Original price was: £3.75.Current price is: £1.50.
    • Performance: up to 57dB Ln’w for impact, 27dB reduction.*
    • Dimensions: 90mm x 90mm x 45/60mm dual height selection
    • Weight: 250g
    • For: homes, workplaces, studios and specialist audio environments
    • Compliance: Compliant with both Part E Building Regulations (England, Wales, Northern Ireland and the Republic of Ireland).*
    • Installation: Please see our installation tab below.
    • Where: floor application only, this will also create a void for including Acoustic Mineral Wool, and the running of services through the access void.
  • Sale!

    MuteCradleâ„¢ 45/60mm

    Original price was: £3.95.Current price is: £1.58.
    • Performance: up to 57dB Ln’w for impact, 27dB reduction.*
    • Dimensions: 90mm x 90mm x 45/60mm dual height selection
    • Weight: 250g
    • For: homes, workplaces, studios and specialist audio environments
    • Compliance: Compliant with both Part E Building Regulations (England, Wales, Northern Ireland and the Republic of Ireland).*
    • Installation: Please see our installation tab below.
    • Where: floor application only, this will also create a void for including Acoustic Mineral Wool, and the running of services through the access void.
  • Pimpled rubber isolation strip

    Isolation Strip P8

    £5.95
      • Performance: Expected 4-8dB* improvement in joist floor systems.
      • Dimensions: 2m x 46mm x 4-8mm.
      • Weight: 500g
      • For: homes, workplaces, industrial developments, and specialist audio environments.
      • Compliance: Compliant with both Part E Building Regulations (England, Wales, Northern Ireland and the Republic of Ireland).*
      • Installation: Please see our installation tab below.
      • Where: multi-use application on walls, floors and ceilings, with a special focus on decoupling the structure to improve acoustic performance.
  • Perimeter Flanking Band (25m)

    Perimeter Flanking Band (25m)

    £14.96
    • For use with acoustic underlays to prevent flanking noise.
    • Installed invisibly around the perimeter of the room.
    • Dimensions: 25m x 8mm x 150mm
    • Weight: 1kg
    • For: homes, workplaces, industrial developments, and specialist audio environments.
    • Compliance: Compliant with both Part E Building Regulations (England, Wales, Northern Ireland and the Republic of Ireland).*
    • Installation: Requires an adhesive.
    • Where: for use with the installation of rigid flooring to create a buffer, special focus on decoupling the floor to ensure best acoustic performance.

    When installation our MuteMat® flooring systems, it is essential to line the perimeter of each room when installing a new subfloor, or installing any hard floor finishes.

  • Perimeter Flanking Band FB8 50m roll

    Perimeter Flanking Band FB8 (50m)

    £34.95
    • For use with acoustic underlays to prevent flanking noise.
    • Installed invisibly around the perimeter of the room.
    • Dimensions: 50m x 8mm x 150mm
    • Weight: 1kg
    • For: homes, workplaces, industrial developments, and specialist audio environments.
    • Compliance: Compliant with both Part E Building Regulations (England, Wales, Northern Ireland and the Republic of Ireland).*
    • Installation: Requires an adhesive.
    • Where: for use with the installation of rigid flooring to create a buffer, special focus on decoupling the floor to ensure best acoustic performance.

    When installation our MuteMat® flooring systems, it is essential to line the perimeter of each room when installing a new subfloor, or installing any hard floor finishes.

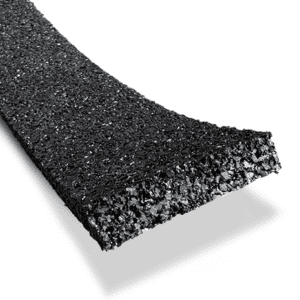

  • Acoustic Batten Strip

    Acoustic Batten Strip

    £5.95
    • Acoustic strip to be used with batten floors.
    • Reduces impact sounds (e.g. heavy footsteps, washing machines).
    • Ideal for soundproofing flats, apartments and commercial developments.
    • Dimensions: 2.5m x 46mm x 10mm.
    • Weight: 400g
    • Noise reduction: Up to a 26dB reduction against impact noise on a typical concrete floor* What’s this?



  • Carpet Gripper Strip 10m Self Adhesive

    £19.95
    • Dimensions: 10m x 30mm x 5mm.
    • Weight: 1.1kg
    • For: homes, workplaces, industrial developments, and specialist audio environments.
    • Installation: to be used with our MuteMat® range, please see our ‘Install’ tab below.
    • Where: used around the perimeter of out MuteMat® materials to raise the Carpet Grippers to an appropriate height. Gripper Rods not included.
  • Acoustic Sealant

    Acoustic and Intumescent Sealant 900ml

    £9.95
    • Apply this sealant to create an air-tight seal ensuring you get the best out of your soundproofing system.
    • Dimensions: 293mm x 62mm x 62-270mm cut out.
    • Weight: 1.6kg.
    • For: every internal application
    • Compliance: Compliant with Part E Building Regulations (England, Wales, Northern Ireland and the Republic of Ireland).*
    • Installation: used with a Jumbo Applicator Gun
    • Where:  between all plasterboard products and around perimeters where it is advised to leave a 2-5mm expansion gap.
    • EAN Number: 5060484200384
    • Fire rating: BS476 Parts 20 / BS EN1366 – 4:2006 + A1:2010 / BS EN ISO 11925-2
    • Download SDS

Acoustic Floor FAQ

Getting the right acoustic underlay is dependent on your specific needs. Some underfloor joists are typically soundproofed as part of a larger system. The method for soundproofing floor joists we recommend is to attach isolation strips to the joists. Isolation strips are a rubber material that goes between the joists and flooring system. By fitting isolation strips you could expect to see a 4-8 dB decrease in sound, making them a highly effective low-cost upgrade to an acoustic flooring system. A further upgrade could be sticking a high-mass Visco elastic membrane like Tecsound to the sides of the joists to help reduce vibration.

To soundproof a timber floor you must add efficiently de-coupled mass. At the simplest end, this means adding pimpled rubber isolation strips on top of the joists and acoustic mineral wool in between them but can go up to adding foam and high-density vinyl matting like the MuteMat range and a fully-fledged soundproof cradle system.

Isolation strips are strips of rubber used to de-couple soundproofing systems from other structures. This includes floor joists and independent timber frames. They are a highly effective low-cost method for reducing the transfer of vibrations.
