MuteMat® OSF 750-03 – Soundproofing Underlay

Shipped by iKoustic from the UK

£156.95

£188.34 inc. VAT

Delivery and Returns Policy

  • Acoustic underlay for reducing impact noise on concrete floors.
  • Most floor finishes can be laid directly on top.
  • Compliant with both Part E Building Regulations (England, Wales, Northern Ireland and the Republic of Ireland).*
  • Density: 750kg per m3
  • Dimensions: 1.25m x 20m x 3mm (25m²).
  • Weight: 60kg (2.3kg m2)
  • Performance: Up to 19dB reduction for impact*.

MuteMat® OSF 750-03 – Soundproofing underlay

Our Soundproofing underlay Mutemat OSF 750-03 offers good performance against impact noise like footsteps and washing machines. The low compression means that most flooring types can be laid straight on top of it with no need for overboard with ply.

If impact noise is all you wish to reduce this is a great cost-effective acoustic underlay. If you need airborne protection and our best-performing impact protection take a look at MuteMat 2 or MuteMat 3.

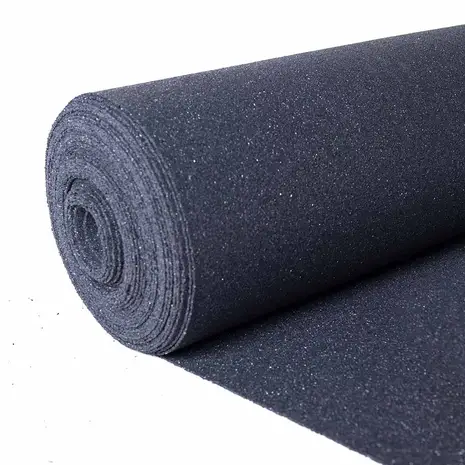

3mm Close Roll
What flooring can you lay ontop of soundproof underlay

For use with most flooring

MuteMat OSF soundproof underlay can be used with most flooring types. Carpet, wood flooring, engineered wood flooring, LVT and laminate can all be laid directly on top. Even tiles with an appropriate thickness don’t require overboarding.

Low compression

Does not Deform

MuteMat OSF maintains efficiency long term even under heavy loads. This means you can lay delicate flooring types like tiles and LVT straight on top without worrying about flexing.

Uniform thickness soundproofing underlay

Consistent Thickness

MuteMat OSF 750-03 has a guaranteed thickness and density. 14% Deflection under 2000kg/m2.

packaging boxes wrapped plastic pallets with hand pallet truck shipping warehouse cargo shipment

Soundproofing underlay UK shipping

MuteBarrier is shipped on a pallet. Unlike others, we hold stock of all of our products ready to dispatch same day Monday to Friday. We also offer next day delivery for orders placed before 1pm Monday to Friday.

Recycled Rubber

High recycled content

Each roll of MuteMat OSF contains 12 recycled tires. You can feel good about your purchase knowing that you’re keeping tires out of landfills and giving them a second life.

MuteMat® OSF 750-03 can be used on timber sub-floors and will offer a moderate level of impact and airborne noise reduction. However, OSF 750-03 is primarily designed for use on concrete floors.

For best results on a timber floor, more compressible products like the MuteMat® 2 or MuteMat® 3 is recommended. Take a look at our MuteMat® 2 or MuteMat® 3 for floor soundproofing in timber structures.

When a residential or commercial property of both existing or new build is subject to Part E Building Regulations or Scottish Building Regulations – the floor soundproofing materials will often require bonding. Confirm this with Building Control and your acoustic testing engineer. For most applications, you can use Styccobond F3 to adhere the underlay.

Where laminate, engineered wood or tiling is to be installed, it is often difficult to find a soundproofing option that does not involve using additional overboarding such as ply of MDF to support them. MuteMat® OSF 750-03 can receive all these flooring options directly on top. You will need to use a Perimeter Edging Strip around the perimeter of each room to butt all floor layers against, negating this stage will cause impact noise to transfer in to adjacent walls leading to Flanking Transmission. Its acoustic performance with these floor finishes laid on top will still be high.

Luxury Vinyl Tiling is becoming increasingly popular due to its ease of maintenance (unlike wooden floor finishes and carpets) and is found to require a suitable soundproofing option with minimal impact to increase floor heights. MuteMat® OSF 750-03 can receive a wide range of these luxury vinyl tiling on top with only the need of adhesive to keep it bonded to the flooring, without any bonding this could lead to partial folding and tearing of the vinyl tiling.

When it comes to areas that have high volumes of moisture and vapour, it is essential to use soundproofing materials that cannot be compromised by moisture. MuteMat® OSF 750-03 is an excellent option as it is not affected by water, mould or fungi and still allows almost any floor finish to be applied on top, it is also ideal for large residential and commercial projects, as well as being high performing to satisfy Part E Building Regulations in concrete structures.

MuteMat® OSF 750-03 is best cut with a fresh Stanley blade and a straight edge or metal ruler, always cut away from your body and behind the straight edge.

MuteMat® OSF 750-03 requires a Perimeter Edging Band around the perimeter of the room to allow floor layers to adjoin to, helping to reduce the effect of Flanking, which can often be the cause of failures regarding Part E Building Regulations. You will also want to use a Blue Cloth Tape to tape the joins together.


Bonding to Substrate

  • F-Ball Styccobond F3 can be used to adhere MuteMat® OSF 750-03 to an absorbent substrate.
    • If primer is required, the recommended primer for most substrates is F-Ball P131.
  • If anhydrite screed has been laid, the laitance must be cleared before applying any primers or adhesives.
    • The recommended primer for anhydrite screed is F-Ball P121.
  • Smoothing compounds and latex screeds are usually designed to accept an adhesive applied directly.

Wooden flooring finish

  • F-Ball Styccobond B95 can be used to bond timber floor finishes to MuteMat® OSF 750-03.

Luxury Vinyl Tile

  • F-Ball Styccobond F46 can be used to bond vinyl floor finishes to MuteMat® OSF 750-03.

Ceramic / Porcelain Tiles

  • MuteMat® OSF 750-03 to concrete/screed substrate, prime the substrate first with roller coat of ARDEX P82, allow to cure, then bond MuteMat® OSF 750-03 using either ARDEX S 28 or ARDEX X 7001 Mictrotec.
    • If bonding MuteMat® OSF 750-03 to a timber substrate, Ardex AF200 should be used.
  • When you come to lay the tiles, you should prime MuteMat® OSF 750-03 with ARDEX P82, then bed the tile into either ARDEX S28 or ARDEX X 7001 Microtec.
  • Flexi grout should be considered.

Find out more information about MuteMat® OSF 750-03 by downloading the guides below.

Installation Guide

Product Data Sheet



If you are looking to specify this product for a build, please refer to our downloads tab for technical product or systems information.

Technical Support
Should you require further technical assistance in specifying our products, please contact us.

BIM Objects
iKoustic also supply a selection of BIM objects via our NBS profile, which can be found here.

Important Information

Our products contain a high level of mass. If there are any structural concerns you will want to consult a Structural Engineer to discuss your requirements.

*Our Typical Performance Results and Noise Reduction Guidance are provided to indicate the results that have been achieved in previous tests but are not guaranteed to a specific site as multiple factors can affect this, you can view their variants on our ‘Featured Systems’ tab.
